DS-3E0106P-E/M

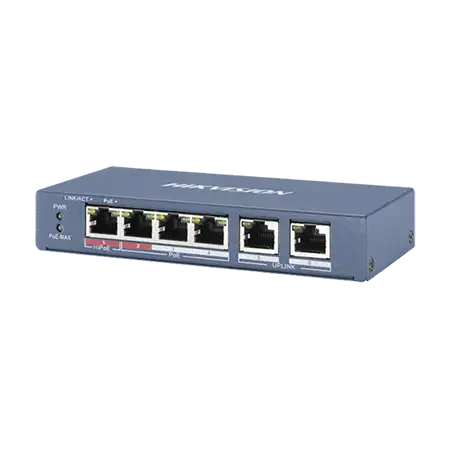

Hikvision L2 Unmanaged 4-Ports 10/100M RJ45 PoE Switch, 2-Ports 10/100M RJ45 uplink port, 802.3af/at, PoE power budget 35W, max. 300m long distance transmission, 6KV surge protection.

https://www.esco.pk/web/image/product.template/6741/image_1920?unique=d021ec4

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    PoE Ports

    4 x 100M PoE ports

    Non-PoE Ports

    2 x 100M RJ45 Uplink ports

    PoE Standard

    Supports IEEE802.3at/af

    PoE power budget

    35W

    Mac Address Table

    4K

    Switching Capacity

    1.6 Gbps

    Packet Forwarding Rate

    0.8928 Mpps

    Shell

    Metal material, fan-free design

    Network Parameters

    Port Number

    4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports

    Port Type

    RJ45 port, full duplex, MDI/MDI-X adaptive

    Standard

    IEEE 802.3, IEEE 802.3u, IEEE 802.3x

    Forwarding mode

    Store-and-forward switching

    Working Mode

    Standard mode (default), Extend mode

    High Priority Ports

    Ports 1 and 2

    Ports for long-distance transmission

    Ports 1 to 4

    MAC address table

    4 K

    Switching capacity

    1.6 Gbps

    Packet forwarding rate

    0.8928 Mpps

    Internal cache

    768 Kbits

    PoE Power Supply

    PoE standard

    Ports 1 to 4: IEEE 802.3af, IEEE 802.3at

    PoE power pin

    Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

    PoE port

    Ports 1 to 4

    Max. port power

    Ports 1 to 4: 30 W

    PoE power budget

    35 W

    Dialing Function

    Long range

    Ports 1 to 4: up to 300 m

    General

    Shell

    Metal material, fan-free design

    Gross weight

    0.52 kg (1.15 lb)

    Net weight

    0.265 kg (0.58 lb)

    Dimension (L × H × D)

    145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)

    Operating temperature

    -10°C to 40°C (14°F to 104°F)

    Storage temperature

    -40°C to 85°C (-40°F to 185°F)

    Operating humidity

    5% to 95% (no condensation)

    Storage humidity

    5% to 95% (no condensation)

    Power supply

    48 VDC, 0.8 A

    Power consumption in idle

    < 5 W

    Max. power consumption

    38 W

    Power source

    38 W
