MW1-RX-F5

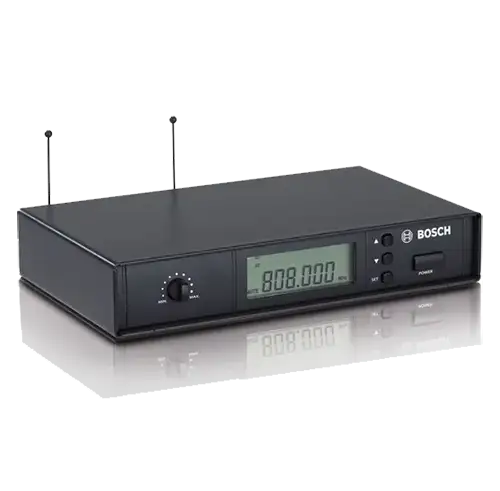

Bosch MW1-RX-F5 Microphone receiver, 722-746 MHz, UHF wireless microphone receiver, true diversity for stable reception, PLL synthesized technology, supplied with AC/DC adapter with power cord and 1.5 m 3 pin XLR male/ female audio cable, Frequency range: 722-746 MHz, 193 selectable UHF channels.

https://www.esco.pk/web/image/product.template/6908/image_1920?unique=5e95dca

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Features

    • 193 selectable UHF channels

    • PLL synthesized technology

    • Pilot tone and noise squelch

    • True diversity for stable reception

    Technical Specifications

    Power source

    12 V to 18 V, 500 mA

    Modulation

    FM

    Frequency selection

    PLL synthesized control

    Frequency range

    722 to 746 MHz

    Channels

    193 channels (in steps of 125 kHz)

    Frequency stability

    ±0.005%

    Technology

    True diversity system

    S/N ratio

    >105 dB

    T.H.D

    <0.6% at 1 kHz

    Antenna

    2 x

    Connector

    BNC

    HF impedance

    50 ohm

    Output

    2 x

    Connector

    XLR 3‑pin male, balanced

    Output level

    ‑12 dBV (max)

    Output impedance

    600 ohm

    Connector

    6.3 mm jack, unbalanced

    Output level

    0 dBV (max)

    Output impedance

    2.2 kohm

    Squelch

    Pilot tone and noise mute

    Dimensions (H x W x D)

    40 x 211 x 152 mm

    (1.57 x 8.30 x 5.98 in)

    Color

    Charcoal

    Weight

    Approx. 1 kg (2.20 lb)

    Antenna length

    50 mm (½ λ)

    Operating temperature

    -25 °C to +55 °C (-13 F to +131 F)

    Storage and transport temperature

    40 °C to +70 °C (-40 F to +158 F)

    Relative humidity

    <95%
