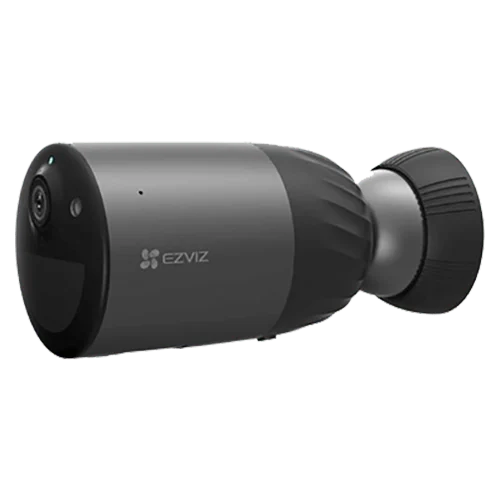

Ezviz BC1C Smart Home Wi-Fi Battery Camera, 2MP(1920 × 1080) 1/2.8” Progressive Scan CMOS Sensor, 3D DNR, Night Vision: 10m / 30ft, H.265 / H.264, AI-powered Human Shape Detection, Support Two way talk, Build-in 32GB eMMC Storage, 7800 mAh Battery Capacity, DC 5V/2A, IP66.
Features
Wi-Fi Camera
EZVIZ BC1C Smart Home Battery Camera
Lithium Battery
7,800 mAh Rechargeable Lithium Battery
Night Vision
Color Night Vision
Protection
IP66 Dust and Water Protection
H.265 Video Compression
Save money on storage and bandwidth.
Motion Detection
Accurate Human Motion Detection
Two-Way Talk
Built-in Mic and speaker
Storage
Built-in 32GB storage, Supports MicroSD Cards (up to 256 GB)
|
Camera Parameters |
|
|
Image sensor |
1/2.8” 2MP Progressive Scan CMOS Sensor |
|
Minimum Illumination |
0.2 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
2.8 mm @ F1.6;125° (Diagonal), 107° (Horizontal) |
|
Lens Mount |
M12 |
|
Day & Night |
IR-cut filter with auto switch |
|
DNR |
3D DNR |
|
Night Vision |
10 m |
|
Video & Audio |
|
|
Max Resolution |
1920 × 1080 |
|
Frame Rate |
50Hz @ 25fps, 60Hz @ 30fps. Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Max. Bitrate |
2Mbps |
|
Network |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Supports 20MHz |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK / WPA2-PSK |
|
Transmission Rate |
11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
|
Wi-Fi Pairing |
AP pairing |
|
Protocol |
EZVIZ cloud proprietary protocol |
|
Interface Protocol |
EZVIZ cloud proprietary protocol |
|
Minimum Network Requirement |
2Mbps |
|
Function |
|
|
Smart Alarm |
AI Human Detection |
|
Customized Alert Area |
Supports |
|
Two-way Talk |
Supports |
|
General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Build-in 32GB eMMC Storage |
|
Cloud Storage |
EZVIZ cloud storage |
|
General |
|
|
Operating Conditions |
-20°C to 50°C (-4°F to 122 °F ), Humidity 95% or less (non-condensing) |
|
IP Grade |
IP 66 |
|
Power Supply |
DC 5V/2A |
|
Battery Capacity |
7800 mAh |
|
Power Consumption |
Max. 5W |
|
Product Dimensions |
104.76 × 62.80 × 62.80 mm (4.12 × 2.47 × 2.47 inch) |
|
Packaging Dimensions |
186.0 × 103.0 × 103.0 mm (7.3 × 4.0 × 4.0 inch) |
|
Weight |
Product: 365 g (12.8 oz) With Package: 835 g (28.4 oz) |
