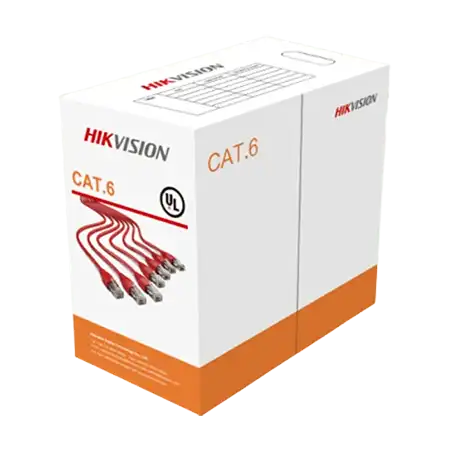

DS-1LN6-UU 305m

Hikvision UTP CAT6 Cable, 23 AWG, 305m/1000 Feet Spool, Excellent transmission performance using solid copper, Great PVC flame resistance

https://www.esco.pk/web/image/product.template/2484/image_1920?unique=f3ad7a3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Core diameter

    0.565mm (23 AWG)

    Conducting Material

    Excellent transmission performance using solid copper

    Insulation Material

    High-Density Polyethylene (HDPE)

    Transmission

    Guaranteed long PoE transmission distance

    General

    Color

    1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown

    Packing

    Wooden Tray & Carton

    Packing Length

    305±1.5m

    Rip-Cord

    Yes

    Drain Wire

    No

    Sheath Physical Properties

    Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength (Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D., No visible cracks

    Electrical Characteristics (20℃)

    1.0-250.0MHz Impedance (Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0

    Conductor

    Material

    Solid-Bare Copper Content 99.95%

    Nom.O.D.(Mm)

    0.565 ± 0.005

    Insulation

    Material

    HDPE

    Diameter

    1.02±0.05mm

    Sheath

    Thickness

    0.55±0.05 mm

    External O.D.

    6.2±0.4 mm

    Surface

    Clean, Frap, Satiation

    Material

    PVC (complies RoHS), CM

    Color

    Orange RAL2003

    Surface Printing

    Letter Height

    3.0 ± 0.3mm

    Print Error & Space

    ≤±0.5%, 1m
