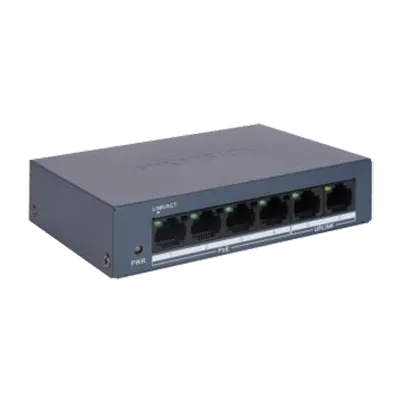

DS-3E0106MP-E/M

Hikvision DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged PoE Switch, 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 ports, Auto MDI/MDIX of ports, Store-and-forward switching mode, Auto MAC address learning and aging, Intelligent cache optimization, MAC Address Table: 2K, Switching Capacity: 1.2 Gbps, Packet Forwarding Rate: 0.89 Mpps, Internal Cache: 768 Kbits, PoE Power Budget: 45 W, 48 VDC, Metal.

https://www.esco.pk/web/image/product.template/24217/image_1920?unique=cb7fc7d

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    PoE Switch

    Hikvision DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged PoE Switch

    Non-PoE Ports

    2 x 100M RJ45 Uplink ports

    PoE Power Budget

    45W PoE Power Budget

    Mac Address Table

    2K

    Switching Capacity

    1. 2Gbps

    Packet Forwarding Rate

    0.89 Mpps

    Network Parameters

    Ports

    4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port

    MAC Address Table

    2 K

    Switching Capacity

    1.2 Gbps

    Packet Forwarding Rate

    0.89 Mpps

    Internal Cache

    768 Kbits

    PoE Power Supply

    PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    PoE Port

    PoE: Ports 1 to 4

    PoE Power Budget

    45W

    General

    Shell

    Metal material, fan-free design

    Net Weight

    0.19 kg (0.42 lb)

    Gross Weight

    0.63 kg (1.39 lb)

    Dimensions (W × H × D)

    121.10 mm × 27.60 mm × 83.10 mm (4.77'' × 1.09'' × 3.27'')

    Operating Temperature

    0 °C to 40 °C (32 °F to 104 °F)

    Storage Temperature

    -40 °C to 85 °C (-40 °F to 185 °F)

    Operating Humidity

    5% to 95% (no condensation)

    Relative Humidity

    5% to 95% (no condensation)

    Power Supply

    48 V DC, 1.04 A

    Max. Power Consumption

    50 W

    Power Consumption in Idle

    1.6 W

    Installation Mode

    Desk-Mounted, Wall-Mounted

    Surge Protection

    2 kV

    Approval

    EMC

    CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

    Safety

    CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

    Chemistry

    CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
