DS-7104HGHI-M1/T

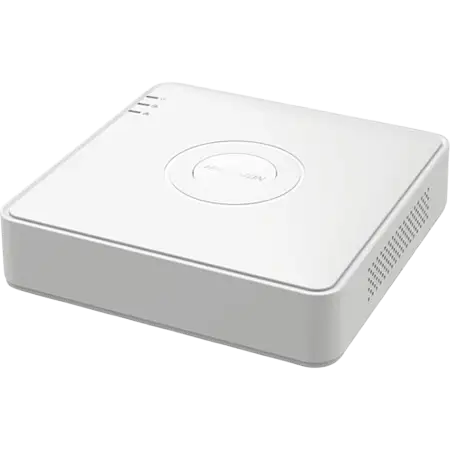

Hikvision DS-7104HGHI-M1/T 4-ch 720p Mini 1U H.265 DVR, Support all channels motion detection technology, H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/CVI/AHD/IP/CVBS video inputs, Audio over coaxial cable, Support all channels HDTVI two-way audio technology, 1-ch (up to 5-ch) IP camera inputs, Human/Vehicle Analysis, HDMI/VGA simultaneous output, 1 SATA Interface (Up to 4 TB capacity), 12 VDC, 1.5 A.

https://www.esco.pk/web/image/product.template/24810/image_1920?unique=76d3c8b
  • Type
  • DVR Series
  • Channels
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare
Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7100HGH
Channels: 4-8 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

Analog Video Input

Hikvision DS-7104HGHI-M1/T 4 Channel DVR

Encoding Resolution

Up to 1080p Lite@25 fps encoding capability

Video Compression

H.265 Pro+/H.265 Pro/H.265 video compression

Video Input

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Deep Learning

Deep learning based human and vehicle targets classification of Motion Detection 2.0

Audio via coaxial cable

Support Audio via coaxial cable

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution

For 1080p stream access: 1080p Lite / 720p Lite / WD1

For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF

For SD stream access: WD1 / 4CIF / VGA / CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @ 25 fps(P)/30 fps (N)

For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF@ 25fps (P)/30 fps (N)

For SD stream access: WD1 / 4CIF / VGA / CIF @25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

1-ch (up to 5-ch)

Up to 1080p resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog Video Input

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

Reuse the first audio input

Synchronous playback

4-ch

Network

Total Bandwidth

64 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection

32

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 10 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to +31 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

Weight

≤ 0.8 kg (without HDD, 1.8 lb.)
