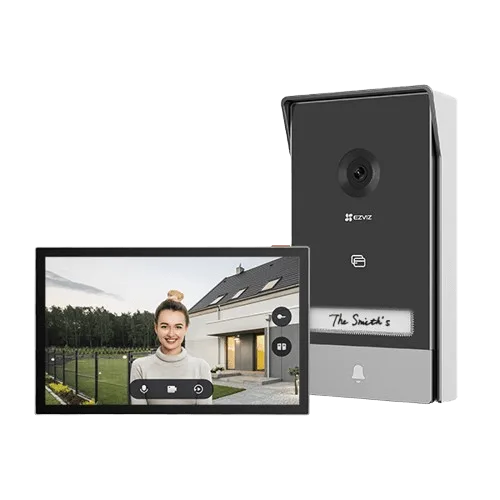

Ezviz HP7 Smart Home Video Doorphone, 2K Resolution, 7-Inch Color Touch Screen, Remote Door/Gate Unlock, Smart Human Motion Detection, Two-Way Talk (Supports voice changer feature), Built-In Doorbell with Multiple Ringtones, Smart RFID Unlock, Supports 2.4 / 5 GHz Dual-Band Wi-Fi, Supports MicroSD Card (Up to 512 GB), 2-Wire Installation, Waterproof Door phone.
Outdoor Doorbell:
Image Sensor: 1/2.7" Progressive Scan CMOS (Supports low light sensitivity), Lens: 2.0 mm @ F2.2,viewing angle: 162° (Diagonal), Day & Night: IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m), Max. Resolution: 2048 × 1296, DNR: 2D / 3D DNR, H.265 / H.264, Frame Rate: Max: 15fps.
|
Outdoor Doorbell |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|
Lens |
2.0 mm @ F2.2, viewing angle: 162° (Diagonal) |
|
Day & Night |
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
|
Max. Resolution |
2048 × 1296 |
|
DNR |
2D / 3D DNR |
|
Video Compression |
H.265 / H.264 |
|
Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
|
Connection and Function |
|
|
Connection Method |
Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
|
Transmission Distance |
Φ 2 x 0.75mm², max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
|
Open the door (Gate) |
Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
|
Unlock (Electric strike plate) |
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
|
Door Open Methods |
1. RFID badge unlock 2. App remote unlock 3. Indoor display unlock |
|
Outdoor Doorbell Interface |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Doorbell Button |
Yes. The light can be set on or off. |
|
Name Card |
Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
Functions | |
Intelligent Alarm | Smart human motion detection, Lingering Detection |
Tamper Alarm | Supports |
Video Intercom | Long-distance video two-way talk |
General | |
Operation Conditions | -30°C to 60°C, Humidity 95% or less (non-condensing) |
IP Grade | Waterproof, with shield cover |
Size | 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch) |
Interior Display | |
Display size | 7” touch screen |
Resolution | 1024 × 600 |
Interface | |
Audio Input | Built-in high-sensitivity microphone |
Audio Output | Built-in high-power speaker |
Button | Screen On / Off Button |
Terminal | Two wiring ports to connect 1st outdoor doorbell. |
Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
Network Parameters | |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Coud Proprietary Protocol |
Protocol | EZVIZ Connect Protocol |
Wi-Fi Parameters | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
Function | |
Multiple ringtones | Up to 20 ringtones |
Functions | Live view, playback, two-way talk, video call |
General | |
Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
Weight | Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz) |
Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |
Power Consumption | 8W, Max. 24W |
