LBC3094/15

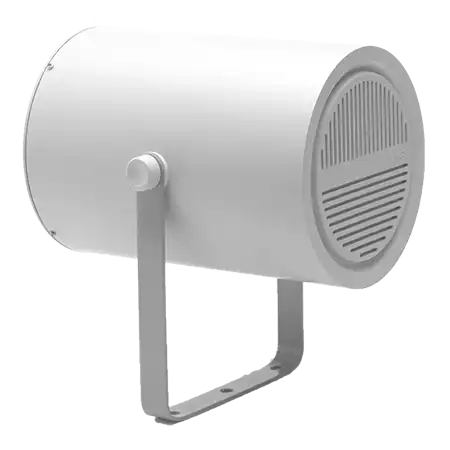

Bosch LBC3094/15 Sound Projector Loudspeaker, 10 W, white ABS, Splash-waterproof, Rated power : 10 / 5 / 2.5 W, Sound pressure level at 10 W / 1 W : 102 dB / 92 dB (SPL), Effective frequency range (-10 dB) : 140 Hz to13 kHz, Opening angle at 1 kHz / 4 kHz (-6 dB) : 160° / 70°.

https://www.esco.pk/web/image/product.template/3357/image_1920?unique=a5b4fb8

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Loudspeaker Type

    Bosch LBC 3094/15 10W Sound Projector Loudspeaker

    Opening Angle

    At 1 kHz / 4 kHz (-6 dB) : 160° / 70°

    Applications

    Splash waterproof makes it ideal for swimming pools, shopping centers, factory grounds and sports fields.

    Effective Frequency Range

    140 Hz to 13 kHz

    Sound Pressure Level

     At 10 W / 1 W (1 kHz, 1 m) : 102 dB / 92 dB (SPL)

    Power

    Rated Power : 10 / 5 / 2.5 W

    Rated Voltage : 100V

    Electrical

    Maximum power

    15 W

    Rated power

    10 / 5 / 2.5 W

    Sound pressure level at 10 W / 1 W (1 kHz, 1 m)

    102 dB / 92 dB (SPL)

    Effective frequency range (-10 dB)

    140 Hz to13 kHz

    Opening angle at 1 kHz / 4 kHz (-6 dB)

    160° / 70°

    Rated voltage

    100 V

    Rated impedance

    1000 ohm

    Connection

    2 m 4-wire cable

    Mechanical

    Dimensions (D x L)

    175 x 268 mm (6.9 x 10.5 in)

    Weight

    2.5 kg (7.3 lb)

    Color

    White (RAL 9010)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
