LBC3482/00

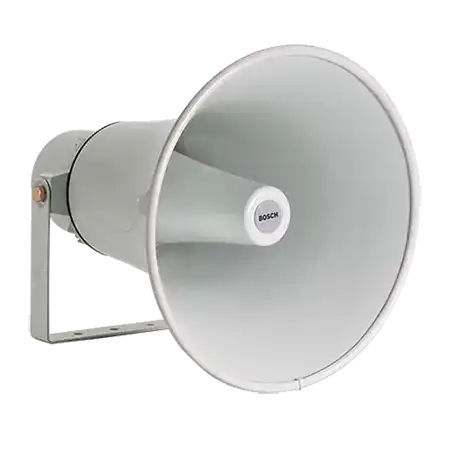

Bosch LBC 3482/00 25W Horn Loudspeaker, aluminum, circular, IP65, Rated power : 25 / 12.5 / 6.25 W, Sound pressure level : 121 dB / 107 dB (SPL), Effective frequency range (-10dB) : 550 Hz to 5 kHz, Opening angle at 1 kHz/4 kHz (-6 dB) : 70° / 25°, LBC3478/00 (14" Horn) + LBC3472/00 (25 W Driver)

https://www.esco.pk/web/image/product.template/3461/image_1920?unique=4d6aab8

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LBC3482/00 25W Horn Loudspeaker

    Power

    Maximum Power : 37.5W, Rated power : 25 / 12.5 / 6.25 W

    Opening Angle

    Opening angle at 1 kHz/4 kHz (-6 dB) : 70° / 25°

    Effective Frequency Range

    550 Hz to 5 kHz (-10dB)

    Sound Pressure Level

     25 W/1 W (1 kHz, 1 m) : 121 dB / 107 dB (SPL)

    Applications

    Splash resistant, makes it ideal for sports grounds, parks, exhibitions, factories, and swimming pools

    Electrical

    Maximum power

    37.5 W

    Rated power

    25 / 12.5 / 6.25 W

    Sound pressure level

    at 25 W / 1 W (1 kHz, 1 m)

    121 dB / 107 dB (SPL)

    Effective frequency range (-10 dB)

    550 Hz to 5 kHz

    Opening angle at 1 kHz/4 kHz (-6 dB)

    70° / 25°

    Rated voltage

    100 V

    Rated impedance

    400 ohm

    Connector

    Screw terminal block

    Mechanical

    Dimensions (L x D max)

    425 x 355 mm (16.7 x 14 in)

    Weight

    3.6Kg (8 lb)

    Color

    Light grey (RAL 7035)

    Cable diameter

    6 mm to 12 mm

    (0.24 in to 0.47 in)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
